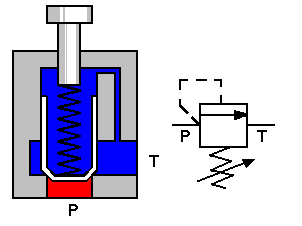

Drawing and simulation of a direct operating pressure relief valve: left: valve closed; middle: symbol of a direct operating pressure relief valve according to ISO 1219; right: simulation of an operating pressure relief valve
Description:
The pressure relief valve is mounted at the pressure side of the hydraulic pump.
It's task is to limit the pressure in the system on an acceptable value. In fact a pressure relief valve has the same construction as a spring operated check valve. When the system gets overloaded the pressure relief valve will open and the pumpflow will be leaded directly into the hydraulic reservoir. The pressure in the system remains on the value determined by the spring on the pressure relief valve! In the pressure relief valve the pressure (=energy) will be coverted into
heat.For that reason longtime operation of the pressure relief valve should be avoided.
